Automatic Pre-folder Gluer

Payment Type: T/T,L/C,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: 800

Additional Info

Packaging: Wooden packing

Productivity: 30sets/month

Brand: Innovo

Transportation: Ocean

Place of Origin: China(Zhejiang)

Supply Ability: 25Sets/month

Certificate: ISO

Product Description

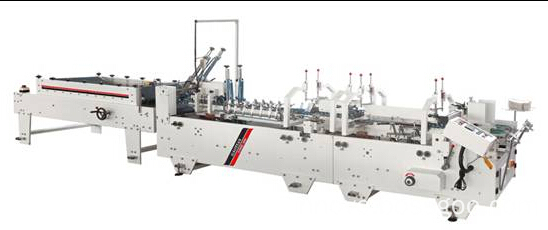

Automactic Pre-folder Gluer

Pre-folded full automatic paste box machine belongs to the four-folede equipment.On 800 original equipment,increase one fold 180,three-folded 150 function, second fold and the fourth fold can be molded in 180 degree; the special design is also available.The pre-folded paper box opens very easily on automatic packer,especially the medicine box.It is widely used in processing the medicine box,wine box and cultural appliances and is the essential equipment in packing printing industry.

Major technical index

Type of boxex
(Amax) (Amin) (Bmax) (Bmin) (Cmin) (Dmin) (Fmin)
box 700mm 70mm 620mm 110mm 8mm 70mm 51mm


Linear velocity
Suitable paper quality 220~600gm cardpaper and E wave corrugated paper
Paste box basic form Both side edge are folded, both sides are Pre-folded, One-side edge pastes.
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power AC220V 3.5 KW
Weight 2000KG
Overall Size 6800*900(1300)*1300mm
The scope of Count 0~999999
