DWB520 semi automatic double wire binding machine

Payment Type: T/T,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: DWB520

Additional Info

Packaging: wooden packing

Productivity: 35sets/month

Brand: Innovo

Transportation: Ocean

Place of Origin: China(Zhejiang)

Supply Ability: 35sets/month

Product Description

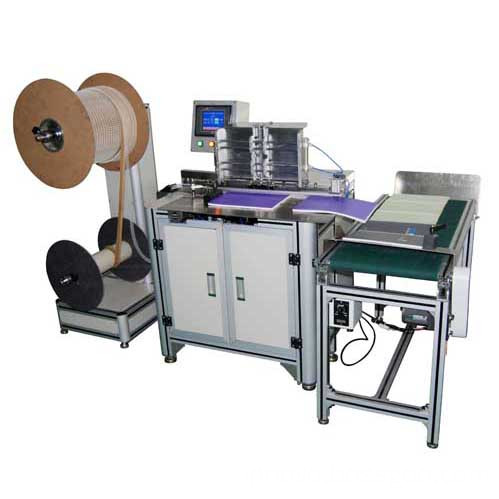

DWB520 semi automatic double wire binding machine

1. Working speed up to 1200 hehe ~1800 books per hour
2. Binding diameters can be 1/4"- 9/16", pitch can be 3:1 or 2:1
3. Skp-binding at one time are available,up to 5 skips binding per once
4. Touch screen and automatic error reminder
5 Automatic hanger binding device ,automatic books convey device
6. New slide-type pneumatic components extend the machine life and ensure the machine stability.


DWB-520 Specifications
Feeding Modle manual delivery
Wire spec auto cut,bind
Max.Paper Width 520 mm
Max.Binding Width 507mm
Min.Paper length 75mm
Working Speed 1,200-1800 t/hour
Size of Worktable(W*D) 600*300mm
Air Compressor(not include) 1.5 KW
Air Pressure 6-8 ba
Main Machine Dimensions 1,000*760*1,230 mm
Net Weight 400 KG
Dimensions of pay-off unit 490*760*1230mm
Net weight

500 KG
