Product Description
Detailed Product Description
high speed
factory price
high quality
brand new
Technical parameter:
Max-speed
|
10000Pieces/hou
|
Max sealing specification
|
324*229mm
|
Min sealing specification
|
100*100mm
|
Overall dimensions
|
2800*950*1700mm
|
Overall weigh
|
1100kg
|
Overall power
|
6.5kw
|
Applicable paper
|
60-157g/m
|
Width of peel base paper
|
12-48mm
|
Applicable paper for peel base paper
|
35-120g/m
|
Adhesive-spraying width
|
1-40mm
|
ZXXF-380 ENVELOPE SEAL GUM SPRAYING AND TAPE STICKING MACHINE
Machinery characteristic:
1.It can adopt either thermosol injection or liquid gum process for production in accordance with different customer,needs.
2.It adopts the PC program control to ensure the position of automatic gum spraying and the stability of gum amount.
3.The stepless regulation mechanism sets the gum length.
4.The bottom flat paper feeding solves the problem of insufficient air flow in case of board paper.
5.It can open the envelop flap tape,fold it again and recover the original(leveling)shape of the envelop automatically.
ZXXF-380 ENVELOPE SEAL GUM SPRAYING AND TAPE STICKING MACHINE

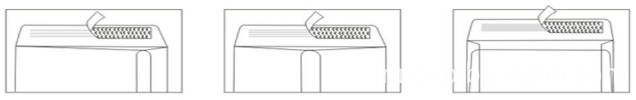

Process sketch map:
some pictures of packing and company documents
