Product Description

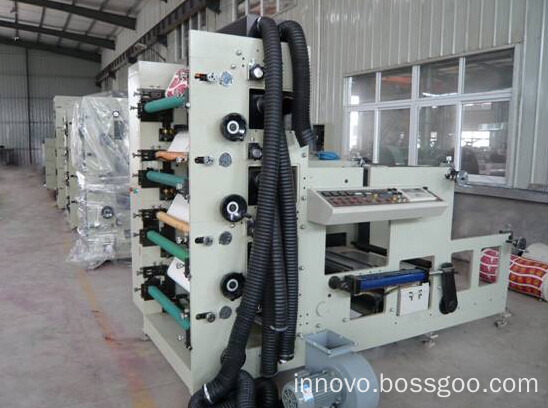

320 Flexible Graphic Printing Machine
Specifications:
320
Flexible Graphic Printing Machine is flexographic printing with Max. Printing
Width 310mm
1.Main motor adopt imports variable frequency stepless
speed regulation.
2.Paper unwinding and rewinding by the magnetic material
brake, clutch control ( or matching Mitsubishi automatic Tension Controller).
3.Anilox ceramic ink roller, with a long life, wear
resistance, corrosion resistance characteristics, so that reduce the times of
replacement Anilox Roller. It is very beneficial for improving the efficiency
of printing.
4.The printing unit use 360 °registration device. Each
printing unit can independently combine and loosen so that other printing units
can continue printing
5.Each printing unit with a group infrared drying device
6.Unwinding and rewinding are done by air shaft device
7.The ink roll card detach from machine automatic when it
stop, and slow down to prevent the ink drying
8.Paper unwinding and rewinding, printing, polishing,
rotary die-cutting, waste discharging, all works completed together
9.Our product with feature that can printing kinds of
material, ink non-polluting, high economic efficiency, and fast printing , is
ideal machine of printing Notes, cardboard, senior stickers trademarks
Parameter:
|
Model
|
ZX-320
|
|
Max. Web Width
|
320mm
|
|
Max. Printing Width
|
310mm
|
|
Printing Speed
|
60m/min
|
|
Chromatic Number
|
4colors
|
|
Chromatic Accuracy
|
±0.1mm
|
|
Printing Perimeter
|
175-320mm
|
|
Max. Unwind Diameter
|
600mm
|
|
Max. Rewind Diameter
|
550mm
|
|
Size
|
2000(L)×1100(W)×2100(H)mm
|
|
Weight
|
2500Kg
|
