High Precision Screen Printing Machine

Payment Type: L/C,T/T,D/P,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: ZX9060A1

Max Printing Size: 900*600mm

Max.Screen Frame Size: 1100*850mm

Min.Screen Frame Size: 700*550mm

Max.Printing Speed: 1200PCS/H

Weight: 580kg

Additional Info

Packaging: wooden case

Productivity: 10

Brand: innovo

Transportation: Ocean,Land,Air

Place of Origin: China(mainland)

Supply Ability: 5/month

Certificate: ISO

Product Description

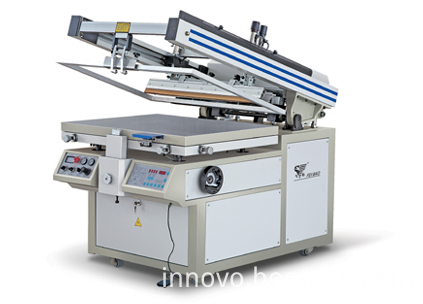

High-precision Screen Printing Machine

A1 Performance and Features

1. Servo motor to control printing itinerary, little variance, suitable for high viscosity ink.
2. Immediately away from screen frame and to assure scraper left and right end synchronous,
    higher precision with same screen.
3. Screen frame pneumatic lock-up, efficiently and precisely
4. Security guard devices equipped, user friendly
5. Top-quality aluminum ramps arm

A2 Performance and Features

1. High-precision dual guide rack with [MEGADYN" belt, frequency converter driven printing,
    good precision and stability.
2. Four cylinders motorized to achieve even pressure with clear frame line
3. The scraper deice move down-up, functioned with speedy adjustment to assure printing quality
4. Top quality aluminum ramps arm
5. Comparatively economical thanA1 Series.
