Microcomputer Single Hydraulic paper cutting

Unit Price: USD 8500.0000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: QZK780DW-8

Classification: Single-blade Cutter

Driven Type: Hydraulic

Type: Living Paper Cutting Machine

Blade Material: Metal

Computerized: Computerized

Max Cutting Heigh: 120mm

Max Clamping Pressure: 30000n

Max Cutting Length: 780mm

Cutting Speed: 45cycles/Min

Max Cutting Width: 780mm


Additional Info


Packaging: wooden case

Productivity: 100sets/month

Brand: INNOVO

Transportation: Ocean,Land,Air

Place of Origin: YIWU,ZHEJIANG

Supply Ability: 100 sets/month

Certificate: CE


Product Description

parameter:

Model

unit

QZX780D

Max cutting width

cm

78

Max cutting length

cm

78

Max cutting height

cm

12

Max clamping pressure

N

30000

Cutting speed

Cycles/min

45

Cutting motor power

Kw

3

Sending paper motor power

Kw

0.55

Wind pump motor power

Kw

0.55

Net Weight

kg

1800

External dimension(L*W*H)

cm

183×195×151

Packing dimension(L*W*H)

cm

215×137×185

Usage:

1.QZX-D Digital Display Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2. 5 inch blue LCD screen : this series of digital display belong to optional configuration, adopts 5inch industrial environment blue LCD, the precision reached 0.05mm, it can display the dimension of the cutting articles in front of the cut blade and behind the blade, has chinese and english function of language. the unit can conver between inch and mm.

3. single Hydraulic Device: The hydraulic device pass CE certificate.

4. Double Guide Device: the paper pusher adopts double imported linear guide and Grinding T shape screw.,which can prolong the machine more precise.

5. Photo cell: it is equipped with a photo cell safety protection device.

6. over load protection device.

7. Convenient knife changing device.

8. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

9. Air ball: air balls are installed in the worktable. In this way, the paper sending work will be easy and accurate.

10. Cutting controller: both of the hands of the user operate the machine. It can cut paper one time.

11Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

12. Safety notice & Glass covers: machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.

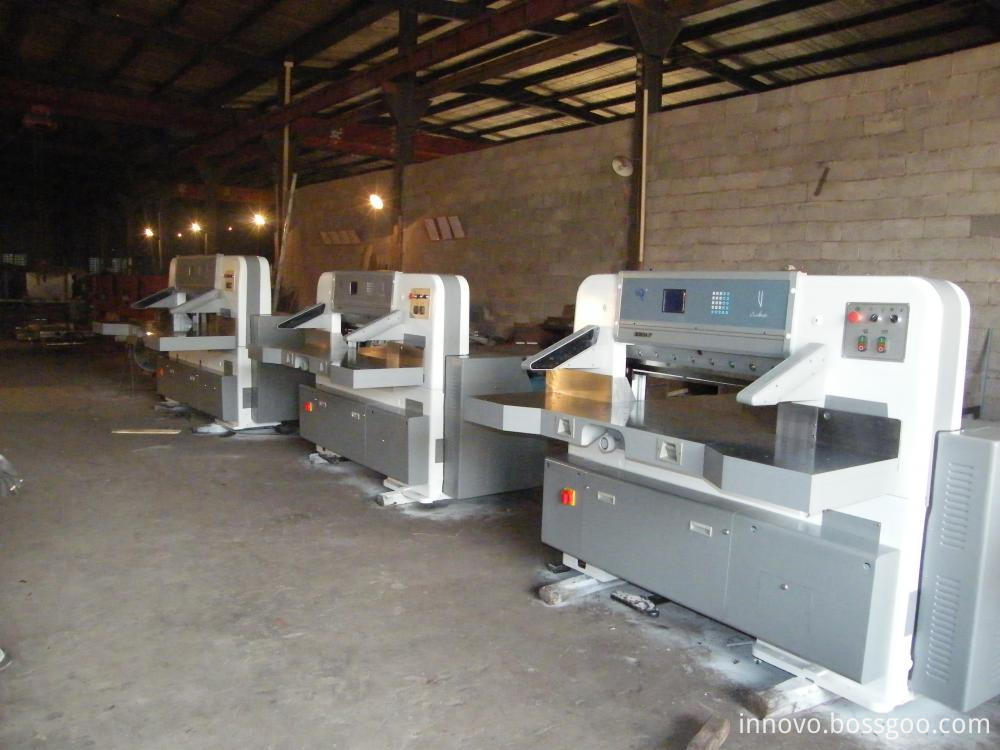

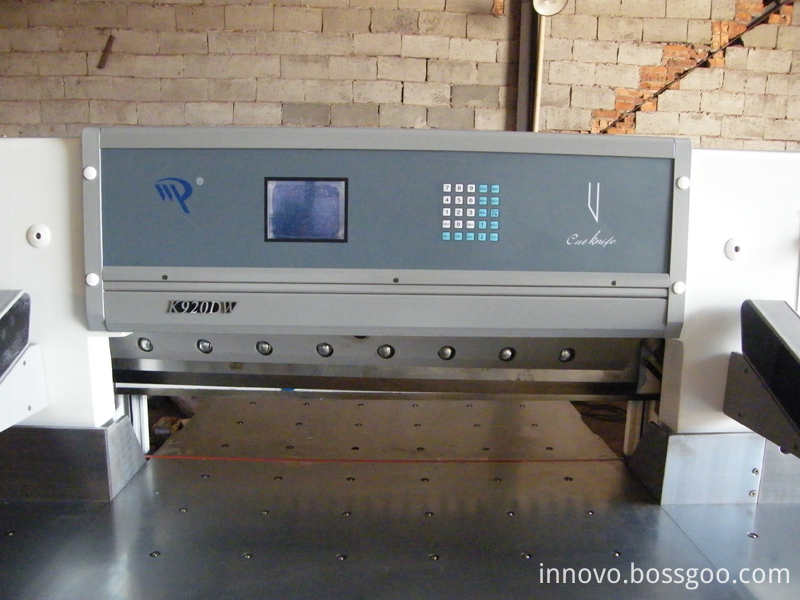

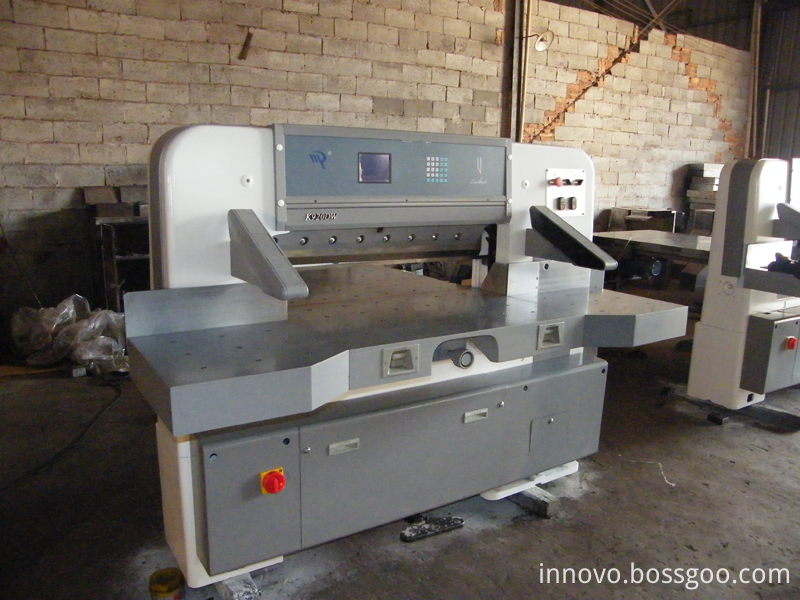

more detailed pictures

QZYK920DW(2)


1


2
