RXJ-1600 Vacuum single face corrugated board making machine

Unit Price: FOB 36000~38000 USD
Payment Type: T/T,L/C,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 30 Days

Basic Info

Model No.: RXJ-1600

Additional Info

Packaging: wooden case

Productivity: 10pcs/month

Brand: Innovo

Transportation: Ocean

Place of Origin: China

Supply Ability: 10pcs/month

Certificate: CE SGS

Product Description

RXJ-1600 Vacuum single face corrugated board making machine


1.Vacuum single face corrugated board making machine

Diameter of corrugated roller:diameter 280mm

Material of corrugated roller:48CrMo High quality steel with high

temperature heat treatment .

Wall thickness of corrugated roller:50mm

Material of pressure roller: NO.45 steel with high temperature heat treatment.

Wall thickness of pressure roller:40mm

Paper guide type:Vacuum absorption

Corrugated roller, pressure roller and rubber roller adopt Pneumatic control.

Bearing of corrugated roller and pressure roller are WGB bearing, adopt the grease lubrication with high temperature resistance

Part of feeding glue adopts automatic cycle feeding glue. On the roller surface after mesh nicking and chrome plating. Corrugated roller is processed by precision grinder.

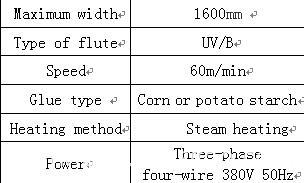

Technical parameters:


2.Mechanical non axis paper frame

Lifting, clamping, loosening, moving and centring of Paper frame are all controlled by electric. Fast feeding paper and flexible rotation, tension control by manual brake, top with the cone top.

Technical parameters:


3.Computer rotary cutting machine

Cutting size:300-1800mm

Cutting precision: Plus or minus 1mm with speed constant
This machine adopts PLC control, frequency control, touch screen control board to desired length, synchronous belt drive has advantages of high precision and low noise etc.

Technical parameters:
