ZX-840A Semi-automatic case making machine

Unit Price: USD 5000.0000 - 10000.0000 / Set/Sets
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info


Model No.: ZX-840A

Warranty: One Year

Delivery Time: 20 Days

Size Of Operation Desk: 980*466mm

Max Size Of Product:: 840*480mm

Power: 2.2kw 220V

Weight: 500kg


Additional Info


Packaging: wood carton

Productivity: 30pcs/month

Brand: Innovo

Transportation: Ocean

Place of Origin: china

Supply Ability: 30pcs/month

Certificate: CE SGS


Product Description

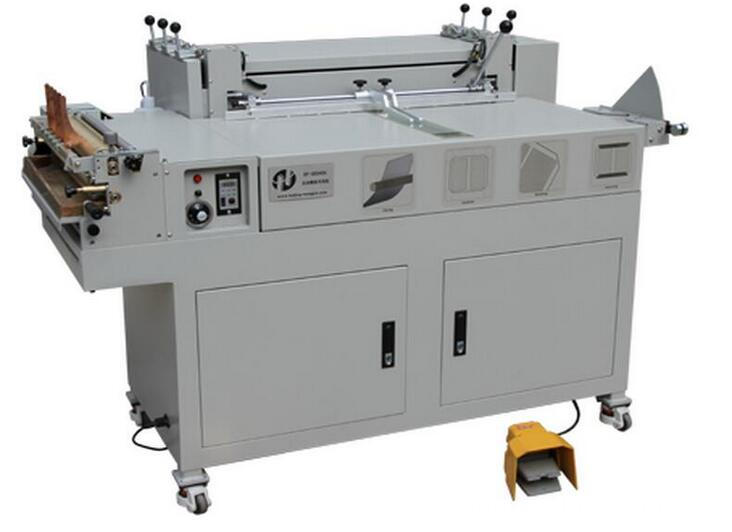

ZX-840A Semi-automatic case maker

17





 Hot gluing                                      Auto edge folder

 Program control                           Optaical fibre detection

 Quantitative filling water             Corner cutter

 Suction assistance                      220V power supply



Wide scope of application:


Not only suitable for the common hard cover papers, but also suitablt for the leather and other materials.
Cheaper cost:

Microthermal protein glue dry quickly, no deformation and lower cost.
Easy operation:
Reciprocating automatic edge fold system fold two edges automatically at one time.
High speed optical fibre detection control the length and position of the paper feeding accurately.
Multi-functions:
Independent homothermal impermeable herater unit can use both protein glue (hot) and white latex (cold).
Quantitative filling the water automatically and the water yield can be adjusted.
Stepless glue application speed.
Soft light reflection and center position.
Standard and three spines hard covers are available by change and add the spine guides quickly.
The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.
Paper guides go up and down and controlled by pneumatic foot valve.
Easy installation:
Split type model can enter into elevator door and office door.
Glue part can be choosed to set on the Left/Right side, the standard model is on the Left side.
Equipped with high load casters, convenient to level adjusting, fixing and moving the machine.

SSK840A can be operated by one person, protein glue (Hot) and white latex (cold) are both available, fold two edges automatically at one time.

It also has the functions like corner cutter, Quantitative filling the water, fast to adjust the thickness of the cardboards, soft light reflection, center position and cover suction assistance.


Description:

Multifunction SK840A includes Hot gluing, suction and position, corner cutter, automatic edge folder etc.

 It's a flexible, high-efficiency and affordable case maker to make different kinds of hard covers for book, album, loose-leaf book, diary, and desk calendar. Suitable for multispecies, short to medium run and wide range of materials to make hard covers.

 SSK840A can be operated by one person, protein glue (Hot) and white latex (cold) are both available, fold two edges automatically at one time. It also has the functions like corner cutter, quantitative water filling, fast to adjust the thickness of the cardboards, soft light reflection, center position and cover suction assistance.

 PLC system control the feed position, distance of edge folder and running time automatically.

      High speed optaical fibre detection control the length and position of the paper feeding accurately.

     Independent homothermal impermeable herater unit can use both protein glue (hot) and white latex (cold).

    Copper alloy made glue application roller and glue reservoir make the heat conduction fast and well distributed.

    Microthermal protein glue dryquickly, no deformation and lower cost.

    Quantitative filling the water automatically and the water yield can be adjusted.

 Stepless glue application speed.

   Large amount of air suction positioning.

   Soft light reflection and center position.

   Adjust the thicknees to fit the thickness of cardboard quickly, easy to change the spine guides.

   The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.

   High speed induction automatic feed device.

   Reciprocating automatic edge fold system fold two edges automatically at one time.

   The base of the machine is equipped with high load bearing footmaster casters, which is convenient for moving the machine, level adjustment and rising fixed.



Four steps to make hard covers:

Hot gluing: Spread the glue on the back of the cover uniformly.

  High accuracy glue roller makes the glue ell-distributed.

 Copper alloy made glue application roller and glue reservoir make the heat conduction fast and well distributed.

 Quantitative water filling device fill proper amount of water according to the use conditions which avoid the glue from drying and soliding.

 Independent homothermal impermeable heater unit, protein glue, jelly glue and white latex can be used separately.

 The thickness of the glue can be adjusted.



Suction and Position: Bound the cardboard and spine with cover paper.



Flexible and fast to change the different version of spine guides, easy to create many fully

decorated have cases.

 Suction assistance makes the cover material positioned accurately, and avoid the bubbles when the cover glued with cardboard.

 It's easy to see the spine position by soft light table with center positing line which labels the reference meshed line for variety of formates

 Humanized back gauge can be adjusted and fixed to ensure the same size of each finished hard cover.



Corner cutter: Cut four corners of the cover paper.



Automatic edge folding: Put the bound cardboard into the edge folder and the edges will be folded automatically.

 Edges of feed direction will be folded after put the bound cardboards in to the edge folder with optical reflex detection.

 The size and position of the edge folding can be adjusted.

 The folding pressure can be adjusted to adapt different thickness of the cardboards.

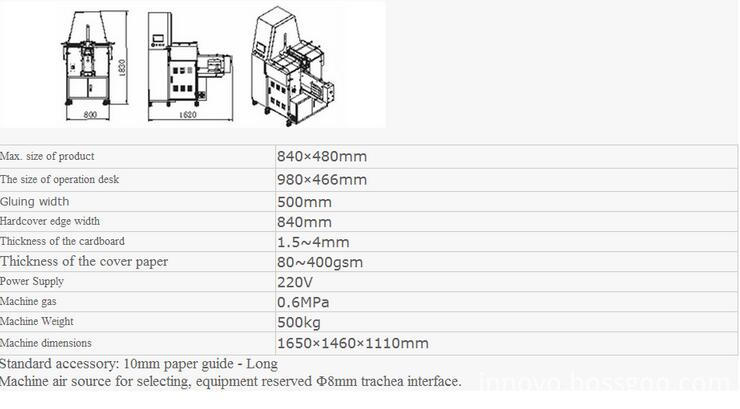

 Specifications:

18
