Product Description
Features:

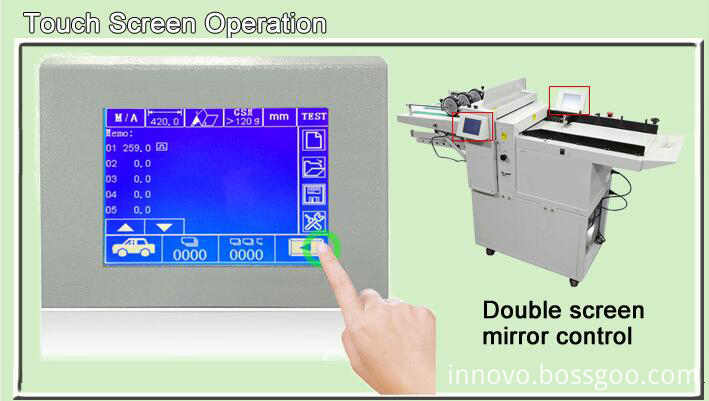

1.double screen control

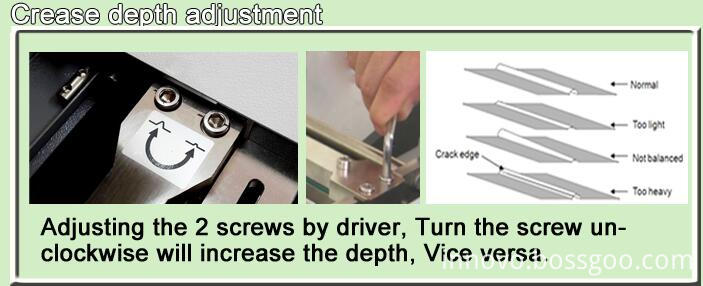

2.Creasing depth adjustable:adjust screw by driver,turn screw un-clock wise will increase the 3.creasing depth,vice verse.
4.Professional crease:crease is friendly,it will not scratch any surface of even if is specially coated.

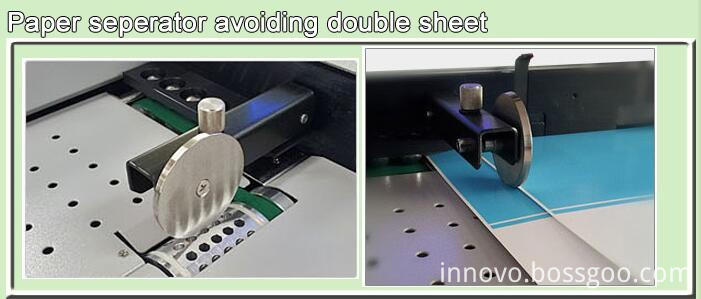

5.Paper seperator:avoid double sheet

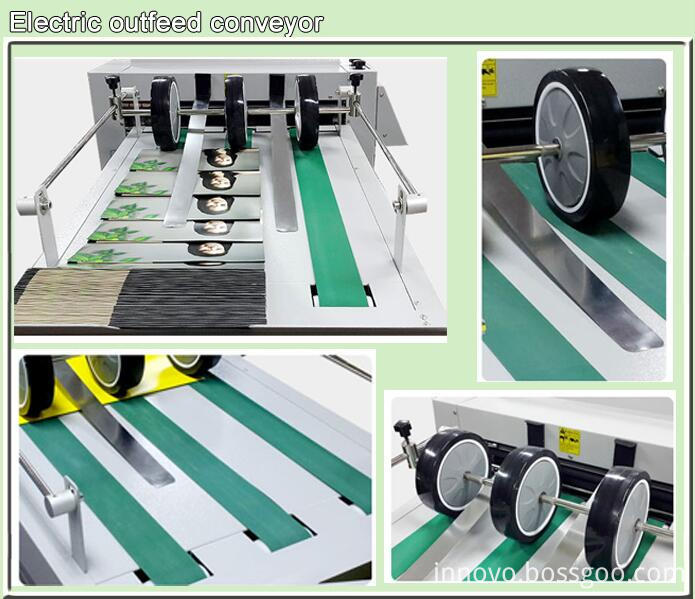

6.Electric outfeeder conveyor
Technical Parameters :
|
Max Paper Sizes
|
560*370 mm (L*W)
|
|
Min Paper Sizes
|
90*50 mm(Hand feed and crease only) or 140*140(Auto Feed)(L*W)
|
|
Paper Thickness
|
100gsm-350gsm/01.mm-0.4mm
|
|
Paper type
|
Non coated paper,coated paper,laminated paper
|
|
Crease line width
|
Standard 1.0mm, Option 0.6/1.2/1.4mm
|
|
Min gap between creases
|
0.1mm
|
|

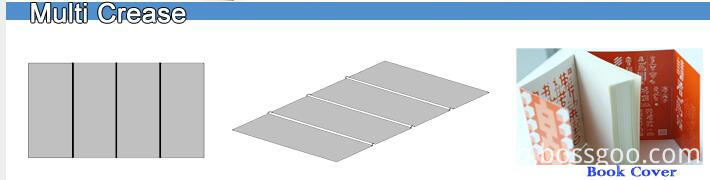

Crease in one pass
|
0-16 / sheet
|
|

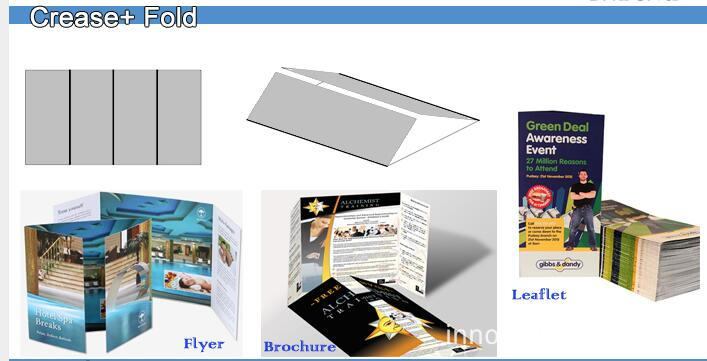

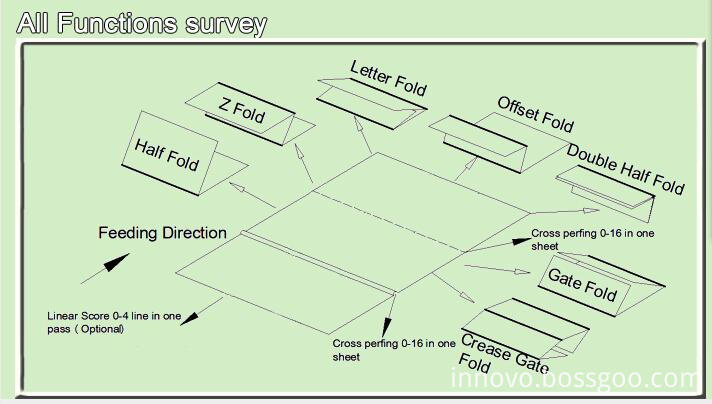

Fold type
|
7 Half/Zigzag/Letter/Gate/Offset/Double half/Gate with one crease
|
|
Speed:
|
43pcs/Min(A4/1 crease)
|
|
Crease Accuracy
|
0.2mm
|
|

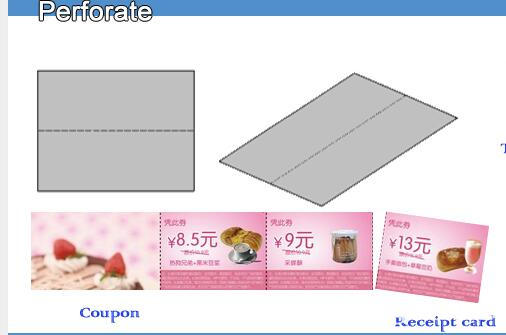

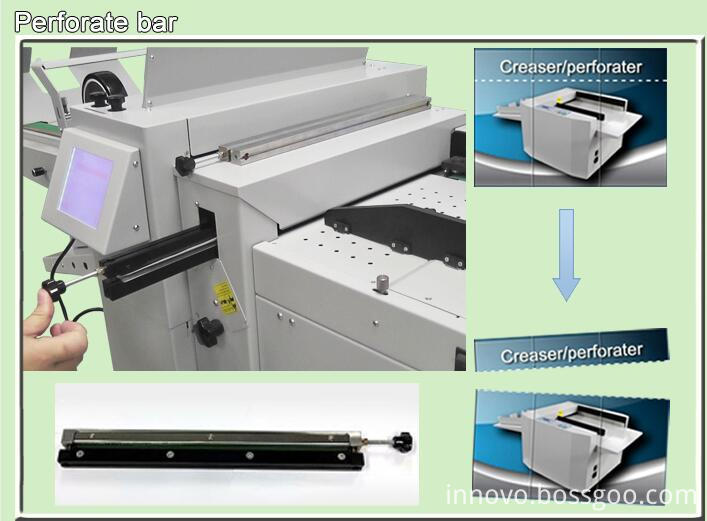

Linear Perforate tools
|
12/24 TPI, mount up to 4 sets in one single machine in standard ,Up to 8 if customized
|
|
Number of program memories
|
30
|
|
Feeding
|
By Suction
|
|
Output capacity
|
50mm
|
|
Option
|
Crease die 0.6/1.2/1.4mm ,Stand,Cross perforate bar 12/24TPI
|
|
Power
|
1800W
|
|
Dimensions(L*W*H)
|
150cm*51cm*108cm
|
Detailed parts:
